Description
Product Detail –
- Brand – /////ALPINE
- Series – Status Series

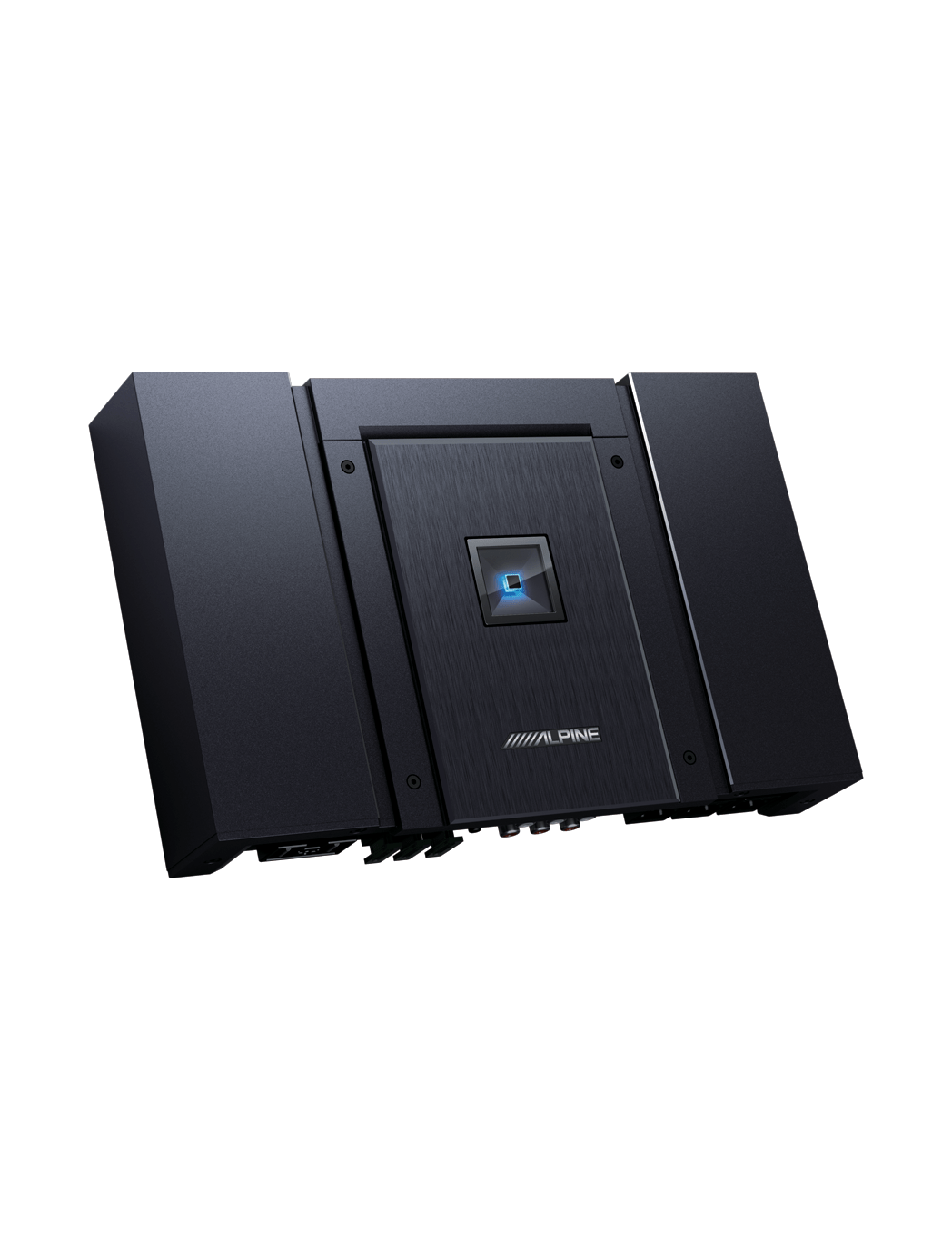

- Model No. – HDA-F60
- Type/Component – Amplifier
Product Highlights:
- Easy Integration
- 4-Channel Car Amplifier
- “Hi-Res” Class-D Amplifier
- Clean Cut Design
- One-Sided Terminal
- Quick and Simple
- Ultra-Compact Size
Key Features:-
- Preamp and Speaker-Level (Up to 10v) Inputs
- Speaker-Level Inputs Require Speaker Wire to RCA Adapters
- Speaker-Level Inputs Feature Signal-Sensing Amplifier Turn-On
- RUX-KNOB.2 Wired Remote Level Control for Sub Channel (optional)
- Quick-Connect Power and Speaker Connectors
More Information -
- Frequency Response: 10 to 60 k Hz, (-3 dB)
- Size: 297x192x50.8 mm (WxDxH)
- Damping Factor: >500
- S/N Ratio: >106dB
- Rated Power: THD+N ≤0.02% (10W), ≤0.07%
- Variable High & Low-Pass Filters: (50-400 Hz, 12 dB/octave)
- Variable Subsonic Filter: (8-40 Hz, 24 dB/octave)
- Variable Bass Boost: (0-12 dB, 50 Hz)
- Fuse Rating: 30A x 3
- Warranty: 1 Year
Product Specifications -
Note:-
- Wiring and Hardware are Not Included with the Amplifier
- 4-Gauge Power and Ground Wire Recommended
