Description
Product Detail –
- Brand – /////ALPINE
- Series – Status Series

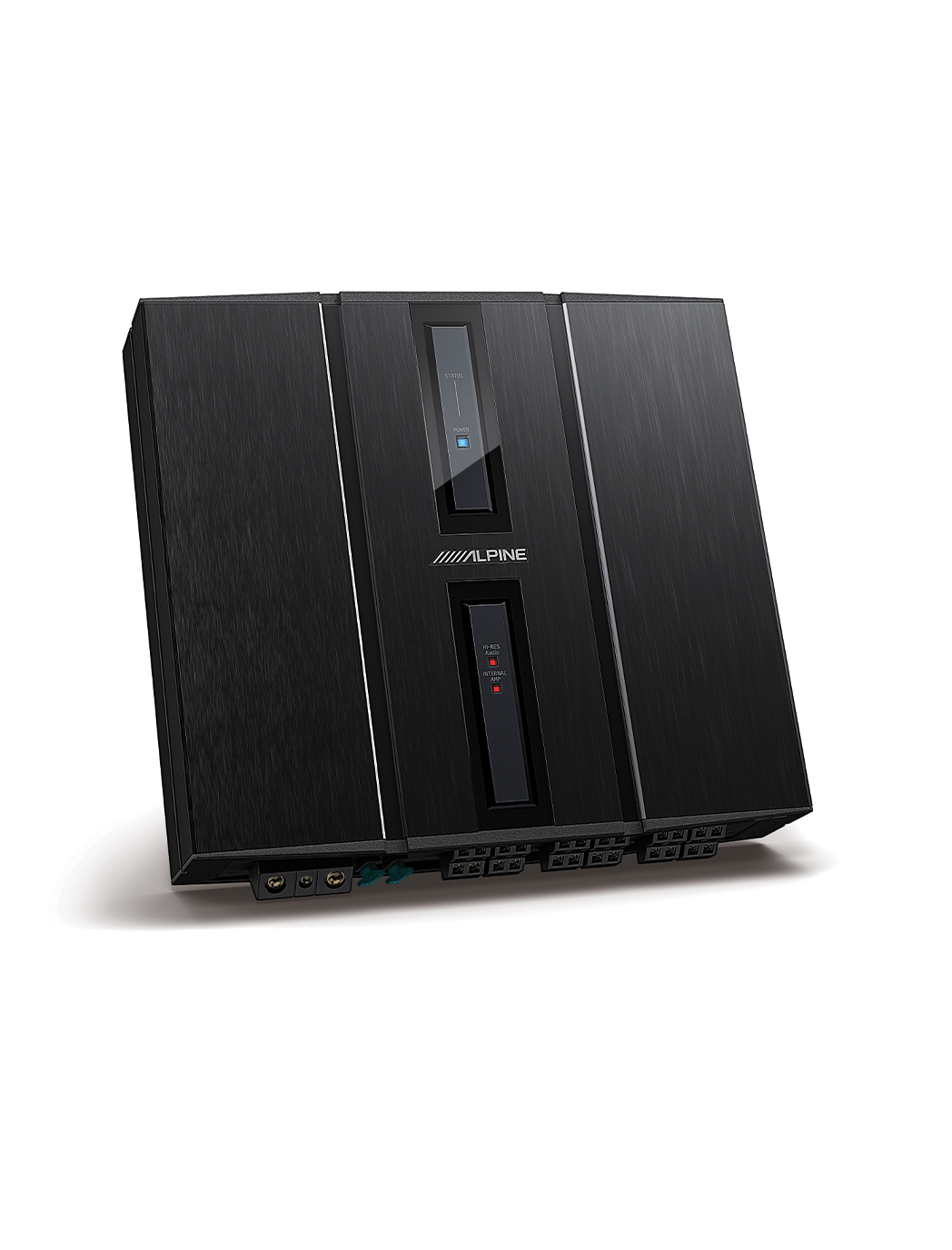

- Model No. – HDP-D90
- Type/Component – DSP Amplifier (Digital Sound Processor)
Key Features:-
- Hi-Res Audio Made Accessible
- HDP-D90 (Hi-Res Audio DSP Amplifier)
- Audiophile Sound Quality
- ALPINE Japanese Sound Master Tuning
- Easy to Install with a Small Size
- Best Design with Aluminium Housing & Silver Logo
- Built-In HD Bluetooth Module
- Wire Controller (sold separately)
Technical Specification -
Amplifier Type:
- 14-Channel Sound Processor
Frequency Response:
- 20 - 40k Hz (Hi-Res)
- Hi-Resolution 192k Hz / 32Bit Playback
Inputs
- 12 High-Level Signal Inputs
- 2-Channel RCA Signal
- Built-in HD Bluetooth
Design
- Optional Controller
Outputs:
- 8 x 50W (Rated Power)
- 4 x 80W (Max Power)
Sound & Tuning:
- 31 Bands Parametric EQ
- 31 Bands Graphic EQ
- Hi-Pass / Low-Pass / Band-pass Crossover
- Time Correction
- Navi-Mix
Dimension:
- 278 mm x 256 mm x 58 mm
Warranty:
- 1-Year Manufacturer's Warranty
More Information -
- Optional Wired Remote Controller (Source, Volume, Bass, Presets)
- 10-Channel Processed RCA Preamp Outputs
- Matrix Mixing Assignable Inputs:
- 12-Channel High-Level Harness (Handles Up to 26 V RMS)
- 2-Channel RCA
- Fuse Rating: 30A x 2
- Dimensions: 11" x 16" x 10.5"
- Coaxial and Optical Digital
- Bluetooth Streaming (Receiver/Dongle Included)
What's in the box:
- 14-Channel audio processor/amplifier
- 6" 26-Pin Input harness
- Bluetooth module with attached 6" cable (RJ-45)
- 5' USB cable (type-A to type-B)
- 2 Mounting brackets
- Four 3/4" screws
- Four 6mm machine screws
- 4 Spare speaker output set-screws
- 1/8" Brass plug
- Quick Reference Guide
- Guide addendum
- Warranty information
- Registration information
Note:-
- Wiring and Hardware are Not Included with the Amplifier
- 4-Gauge Power and Ground Wire Recommended
