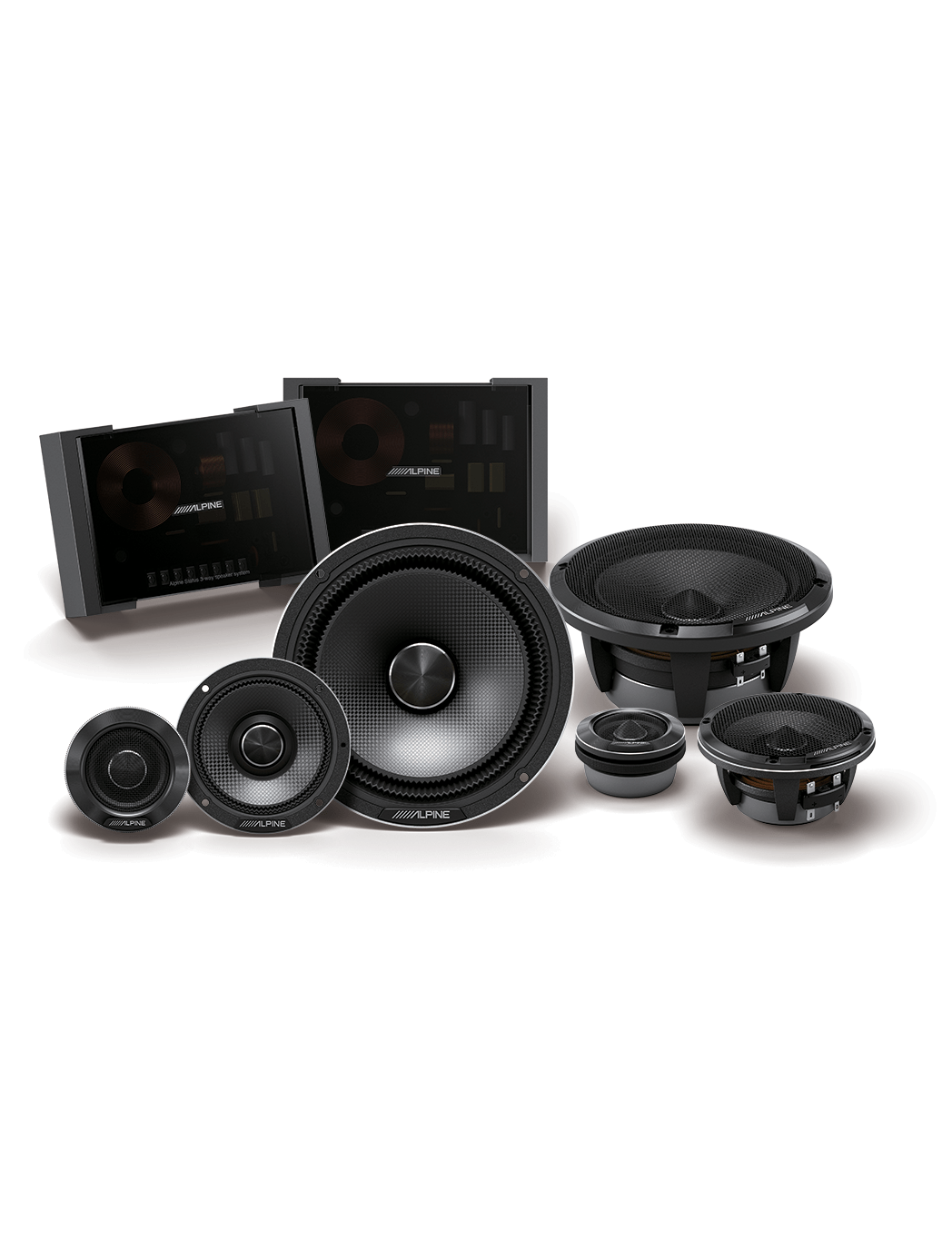

ALPINE HDZ-653 Car Speaker

Product Detail –

• Brand – /////ALPINE
• Series – Status Series
• Type – Hi-Resolution
• Model No. – HDZ-653
• Component – 3-Way Component Speaker

Key Features –

• AlpineF#1Status Heritage
• Clear Sound & Low Distortion
• Unified Timbre Identity
• Hi-Res Audio Made Accessible
• Audiophile 3-Way Speaker System
• Carbon Fiber Cones
• High-End Ring-Radiator Tweeter
• Alpine Status Full System
• Audiophile Speaker X-Overs
• Slim-Fit Tweeter Version
• Studio Recording Spec
• Alpine Status Full System
• Get High-End Car Audio Performance

Technical Specification –

• Frequency Response: 55 – 40k Hz
• Power Handling: Maximum Peak Power: 300 W, Maximum RMS power: 100 W
• Sensitivity: 88 dB SPL (2.83 V @ 1 m)
• Structure: Carbon cone and Double Gathered Edge
• Impedance: 4Ω
• Mounting Depth: Woofer 67mm / mid-range 39mm
• Cutout Diameter: Woofer 142mm / mid-range 79mm
• Recommended Amplification: up to 100W RMS per channel
• Material:  Aluminum Die-cast, Ferrite magnet
• Dimension: 30 mm (Tweeter), 90 mm (Midrange), 165 mm (Woofer)

What’s in the box:

• Two woofers
• Two woofer grilles
• Two midrange
• Two midrange grilles
• Two tweeters
• Two threaded tweeter mounting rings
• Two crossovers
• Four rectangular adhesive-backed pads
• Eight 1-1/8″ Woofer mounting screws
• Sixteen M3 Screws (1-1/8")
• Eight speed-clips
• Four flat washers
• Owner’s manual
• Warranty information
• Important Notice
• Online product registration information
