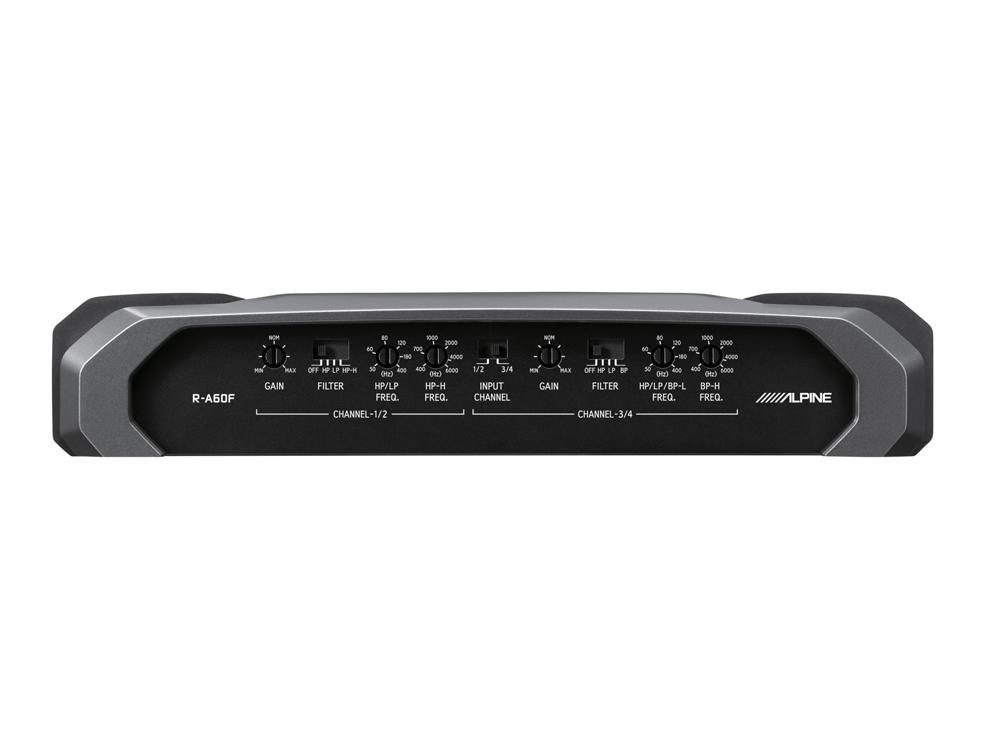

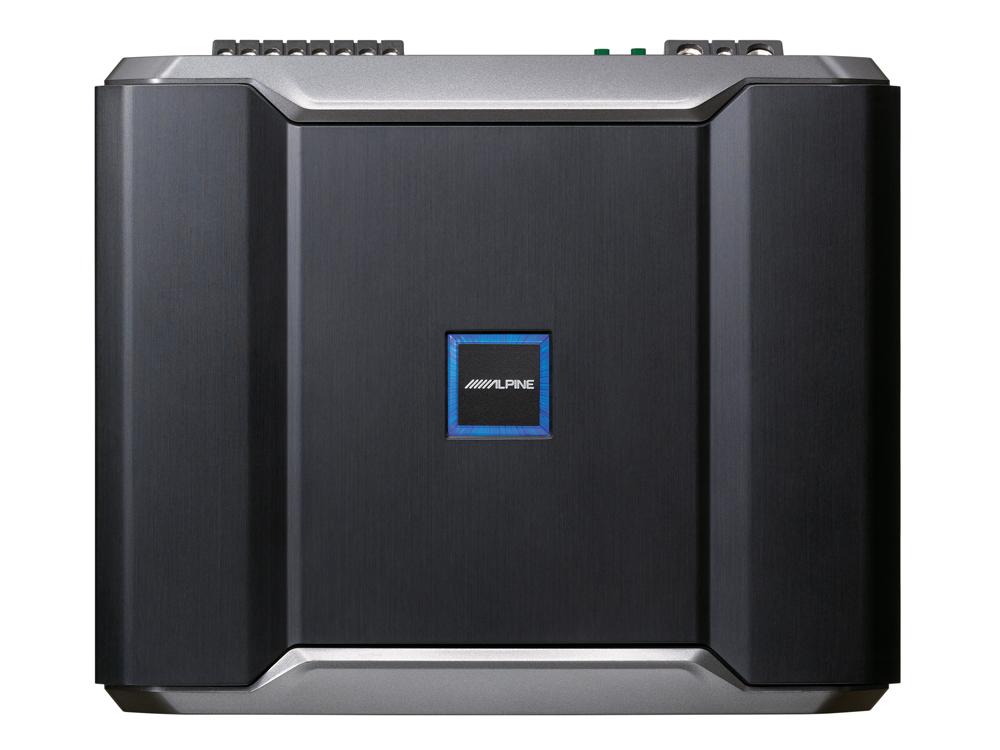

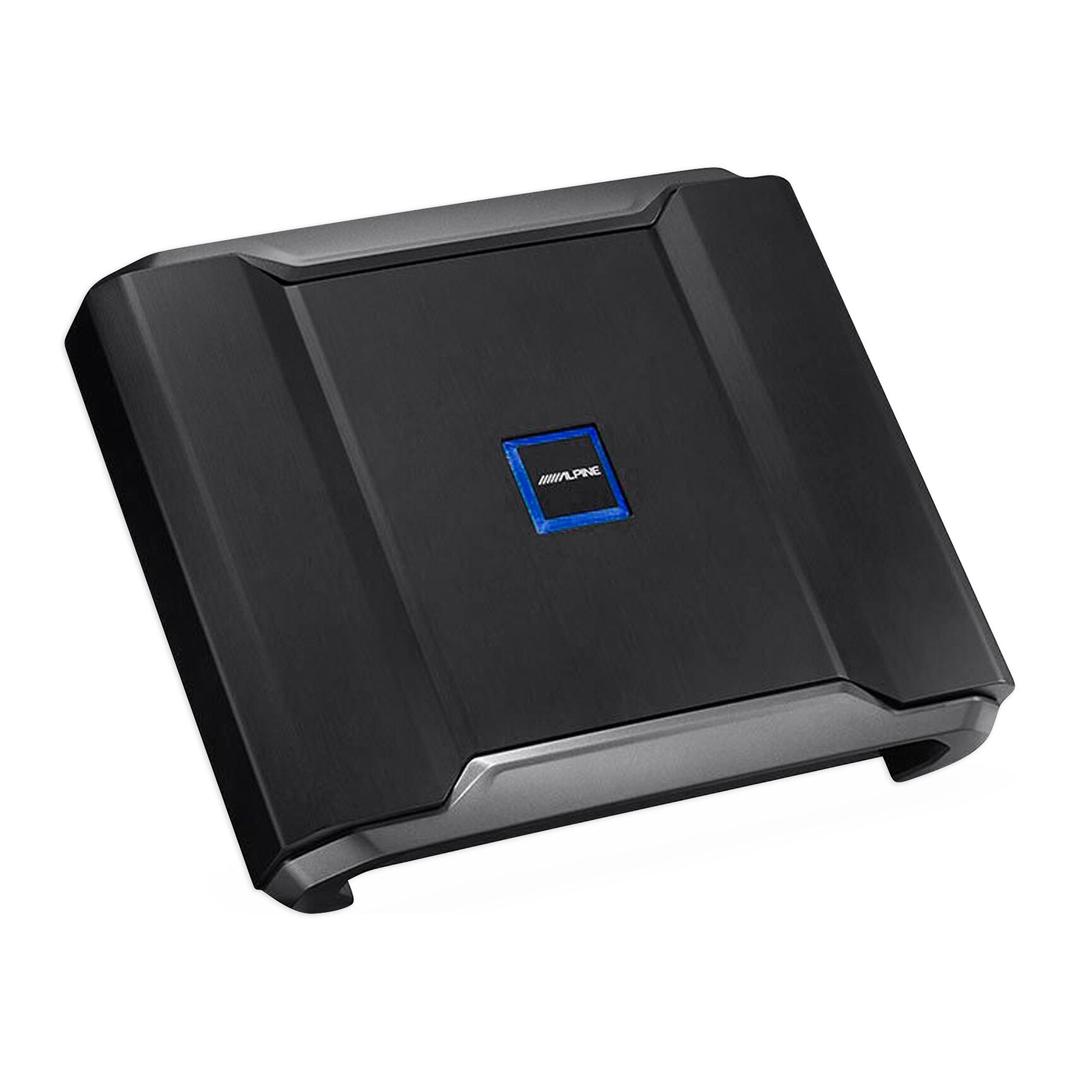

Description
Product Detail –
- Brand – /////ALPINE
- Series – R Series
- Model No. – A60F
- Type/Component – Amplifier
Product Highlights:
- 4-Channel Car Amplifier
- Class-D Amplifier
- CTA-2006 Compliant
- Variable High-Pass, Low-Pass, and Bandpass
- RUX-KNOB.2 (optional remote)
Technical Specification -
Amplifier Type
- 4-Channel Car Amplifier
Frequency Response
- 15 to 45K Hz (Hi-Res capable), (+0/-3 dB)
Power Handling
- 100 Watts RMS x 4 at 4Ω (150 Watts RMS x 4 at 2 Ohms)
- 300 Watts RMS x 2 in Bridged Mode (4-Ohm stable in bridged mode)
- CTA-2006 Compliant
Design
- Class-D
Dimension
- 10-3/4"W x 2-1/16"H x 10"D
Warranty
- 1 Year
More Features:

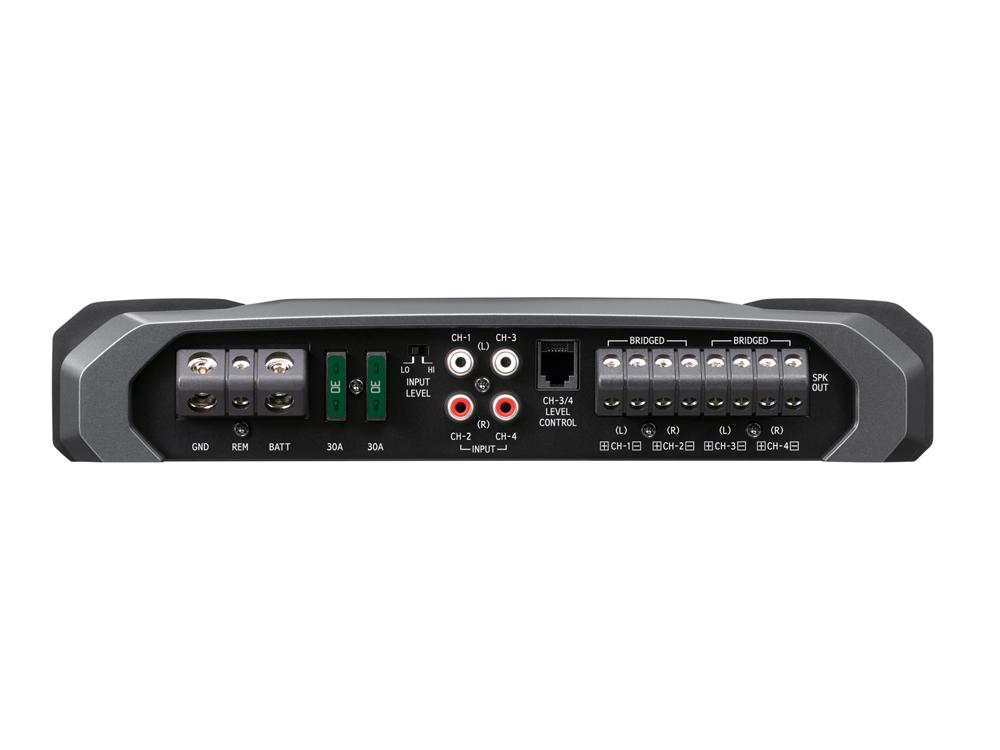

- Preamp and speaker-level inputs
- Variable high-pass, low-pass, and bandpass filters on front and rear channels
- Speaker-level inputs require RCA adapter cables
- Wiring and Hardware are not included with the amplifier
- 4-Gauge power and ground leads recommended
- Optional RUX-KNOB.2 wired remote - available for rear channels
In the Box:-
- ///// ALPINE R-A60F Owner's Manual Card
- 1 Piece - 4 Channel Amplifier
- 2 Piece - 30 A (ampere) ATO Fuses (installed)
- 4 Piece - Mounting Feet
- 4 Piece - 3/4" Screws
- 8 Piece M2. - 5x5.5mm Machine Screws
- 2mm Allen Wrench
- 3mm Allen Wrench
- Alpine Verification Certificate
- Power Supply Note
- Online Product Registration Information (English/ French/ Spanish)
- Warranty Information (English/ French)
- Important Notice! (English/ French)
