Product Detail –

• Brand – /////ALPINE
• Series – R Series
• Type – R2

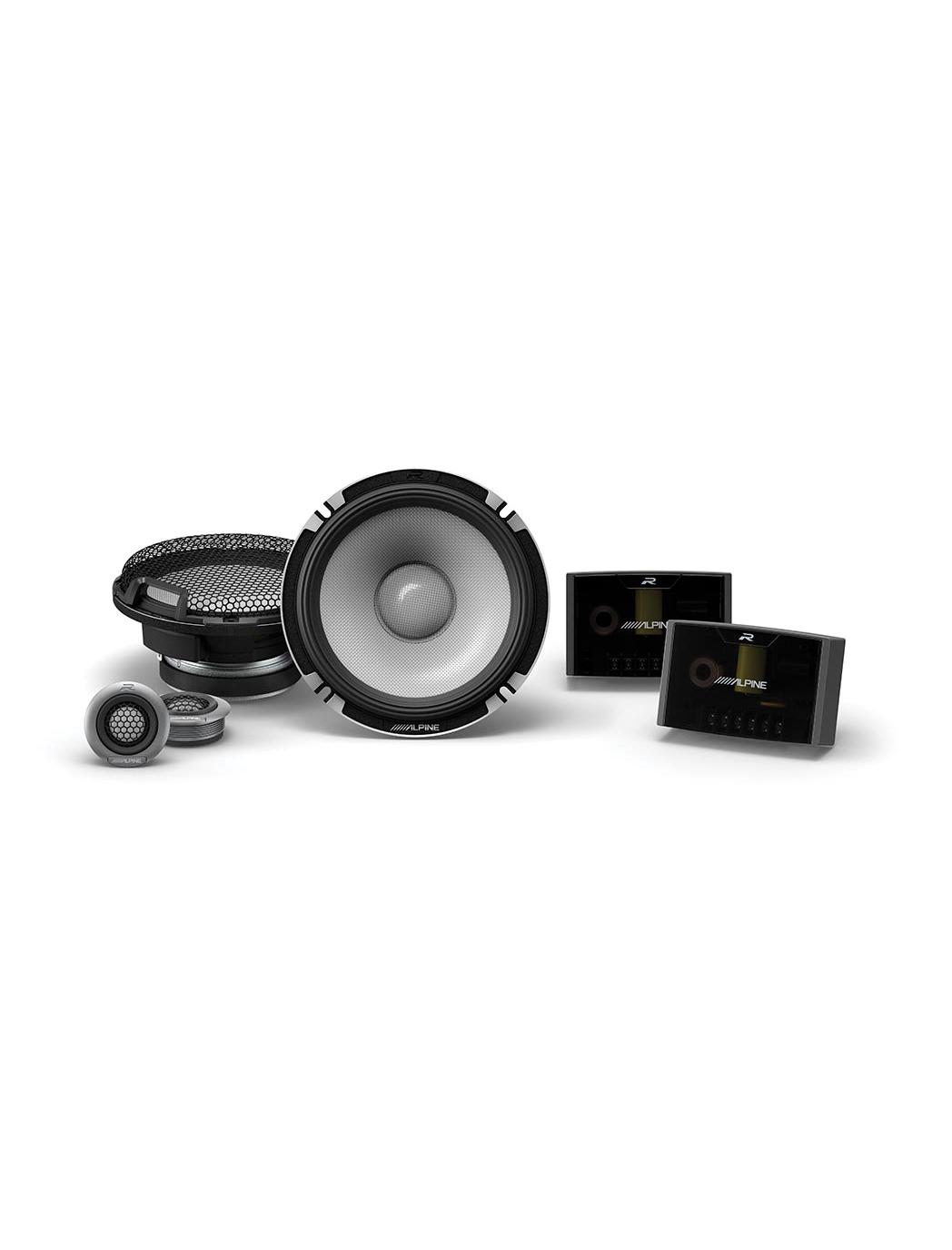

• Model No. – R2-S652
• Component – 2-Way Component Speaker

Product Highlights:

• R-Series Technology
• 2-Way PRO Component Speakers
• Professional Speaker Network
• Glass-Fiber Reinforced Cone
• Composite Basket and Large Magnets
• Hi-Res Audio Certified Hard Dome Tweeter
• Easy-Fit Tweeter in OEM Locations
• High-Pass X-Over Network
• HAMR Surround
• New Speaker Grills

Technical Specification -

• Speaker Type: 2-Way Components Speakers
• Speaker Sub Type: R-Series Pro
• Speaker Size: 6 - 6.75" (Door Speakers)
• Speaker Size: 6.5"
• Max Power Output: 300W
• Nominal Power Output: 100W RMS
• Frequency Response: 65 Hz - 40k Hz
• Impedance: 4Ω
• Sensitivity: 88dB SPL (1W @ 1m)
• Cone Material: Glass-Fiber Reinforced Cone
• Speaker Grilles: Yes
• Dimension: 25mm (tweeter), 165mm (woofer)
• Warranty Period: 1-Year Manufacturer's Warranty

What’s in the box:

• 2 Woofers
• 2 Woofer grilles
• 2 Tweeters (each has an attached 30" length of wire terminated with quick slides)
• 2 Crossovers
• 2 Tweeter grilles (installed)
• 2 Flush mount housings (with tweeters installed)
• 2 Flush mount retention rings
• 2 Angled surface mount housings
• Two 45" Tweeter wire extensions
• 2 Self-adhesive pads
• Eight 1-1/8" Screws
• Four 5/8" Screws
• Eight 3/4" Screws
• 8 Large speed-clips
• 4 Small speed-clips
• Warranty information
• Online product registration information
• Important Notice
• Template and specs on the box
