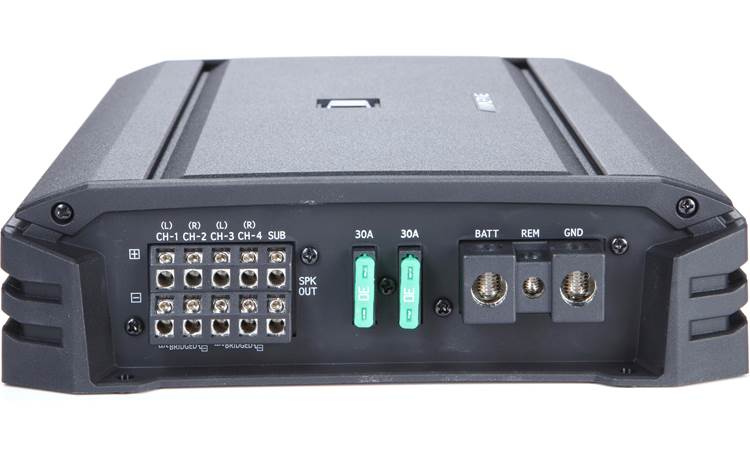

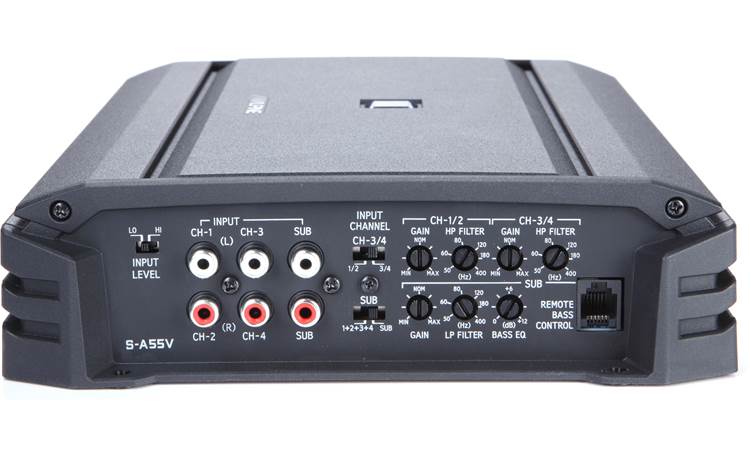

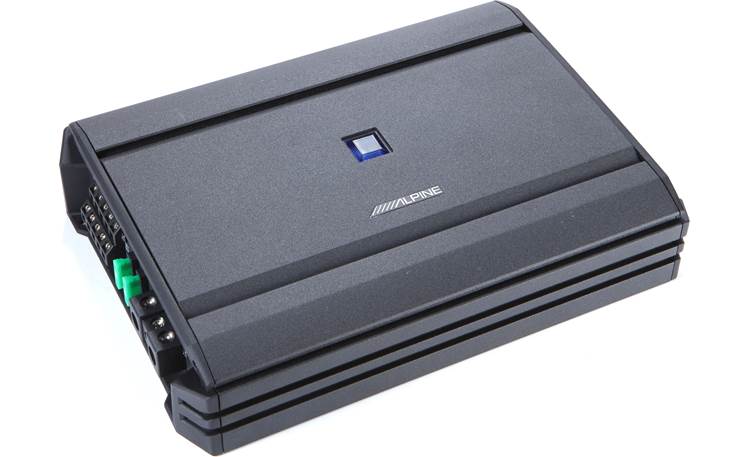

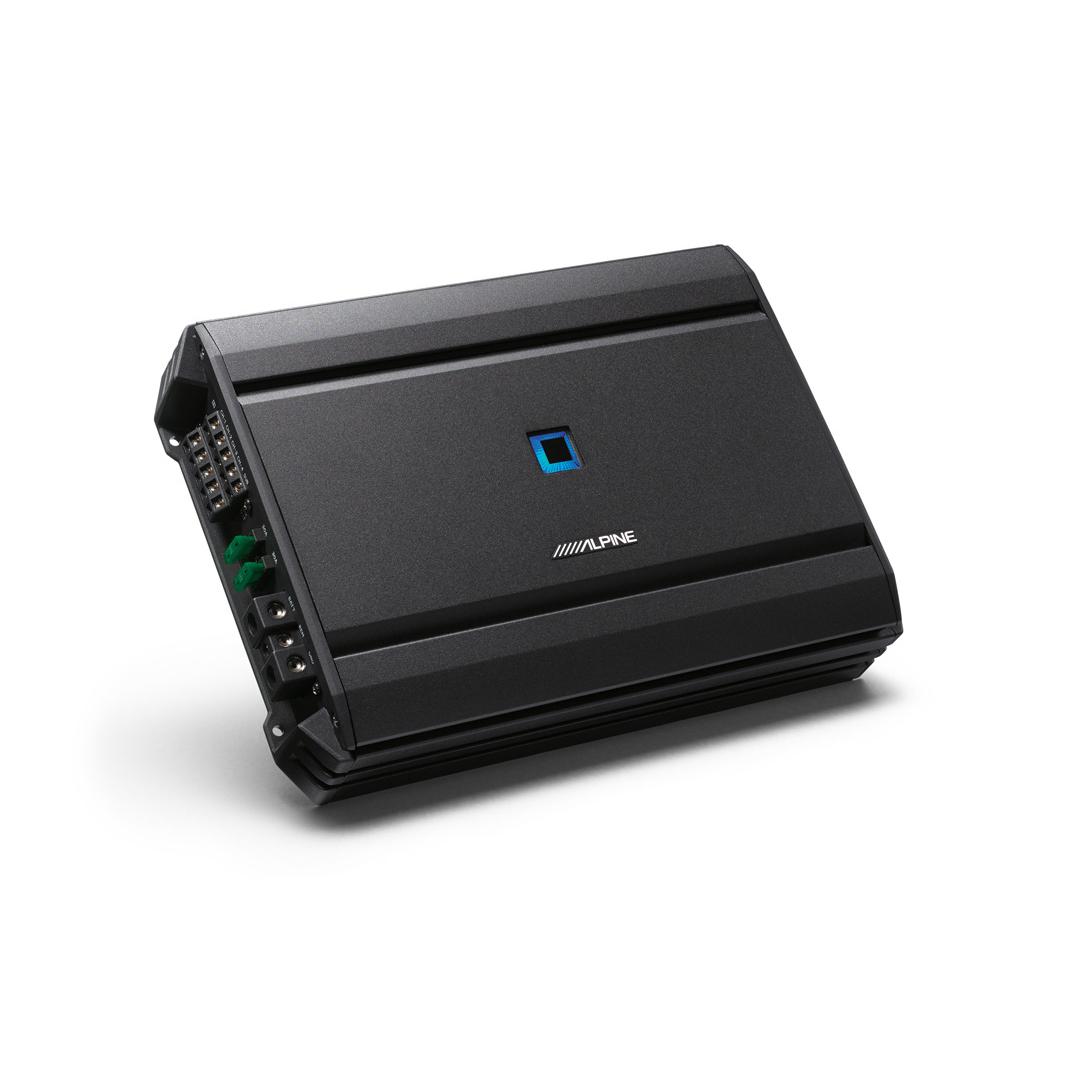

ALPINE S-A55V Car Amplifier

Product Detail –

• Brand – /////ALPINE
• Series – S Series
• Model No. – A55V
• Type/Component – 5-Channel Power Pack Amplifier

Product Highlights:

• 5-Channel Car Amplifier
• CTA-2006 Compliant
• Optional RUX-KNOB.2 Wired Remote Level Control for Sub Channel
• Preamp and Speaker-Level Inputs
• Speaker Wire to RCA Adapter Required for Speaker-Level Input
• Wiring and Hardware are Not Included with the Amplifier
• 4-Gauge Power and Ground Leads Recommended
• Fuse Rating: 30A X 2

Key Features:-

• Compact and Powerful
• One-Sided Cable Terminals
• New Intelligent Amplifier Platform
• Improved Heat Sink and Protection Circuit Design

Technical Specification -

Amplifier Type

• 5-Channel Power Amplifier

Frequency Response

• Variable High-Pass Filter (50 - 400 Hz, 12 dB/octave) on 4-Channel Section
• Variable Low-Pass Filter (50 - 400 Hz, 24 dB/octave) on the Subchannel
• Variable Bass Boost (0 - 12 dB at 50 Hz) on Subchannel

Power Handling

• 40W RMS x 4 + 200W RMS x 1 at 4Ω
• 60W RMS x 4 + 300W RMS x 1 at 2Ω
• 120W RMS x 2 Bridged at 4Ω + 300W RMS x 1 at 2Ω

Design

• Thermal Protection

Dimensions

• 13-1/4"W x 2-5/16"H x 8-1/16"D

Warranty

• 1-Year Manufacturer's Warranty



In the Box:-

• 5-Channel Amplifier
• Two 30A - ATO Fuses (installed)
• Four 3/4" Screws
• 2 mm Allen Wrench
• /////ALPINE S-A55V Owner's Manual Card
• S-Series Amplifier Application Guide (English/ French)
• Online Product Registration Information (English/ French/ Spanish)
• Warranty Information (English/ French)
• Important Notice! (English/ French)
