Product Detail –

• Brand – /////ALPINE
• Series – S Series
• Model No. – S69
• Type/Component – 2-Way Car Speakers

Product Highlights:

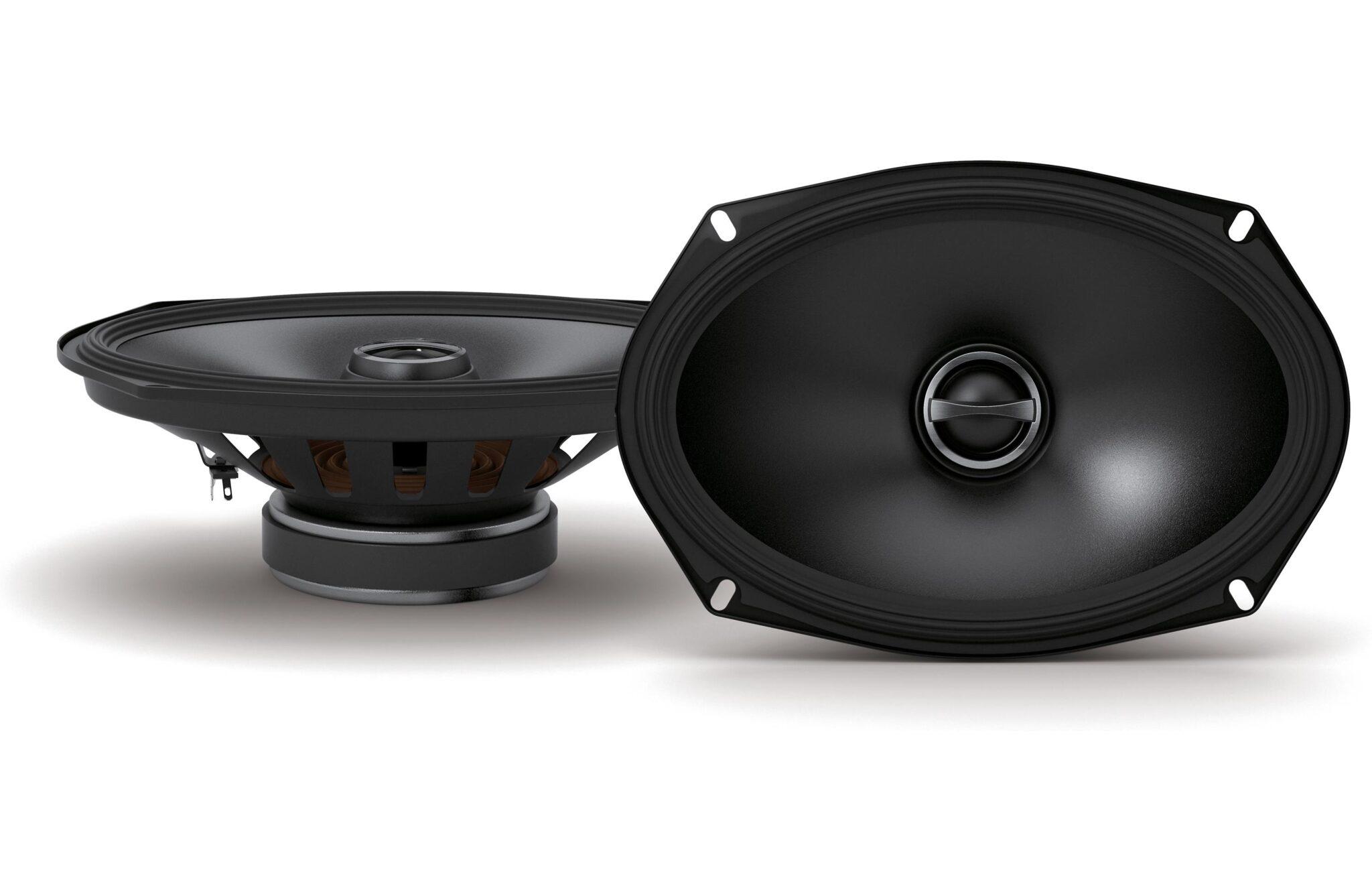

• 6″x9″ 2-Way Speakers
• Carbon Fiber-Reinforced Plastic Woofer Cone with Specialized Rubber Surround

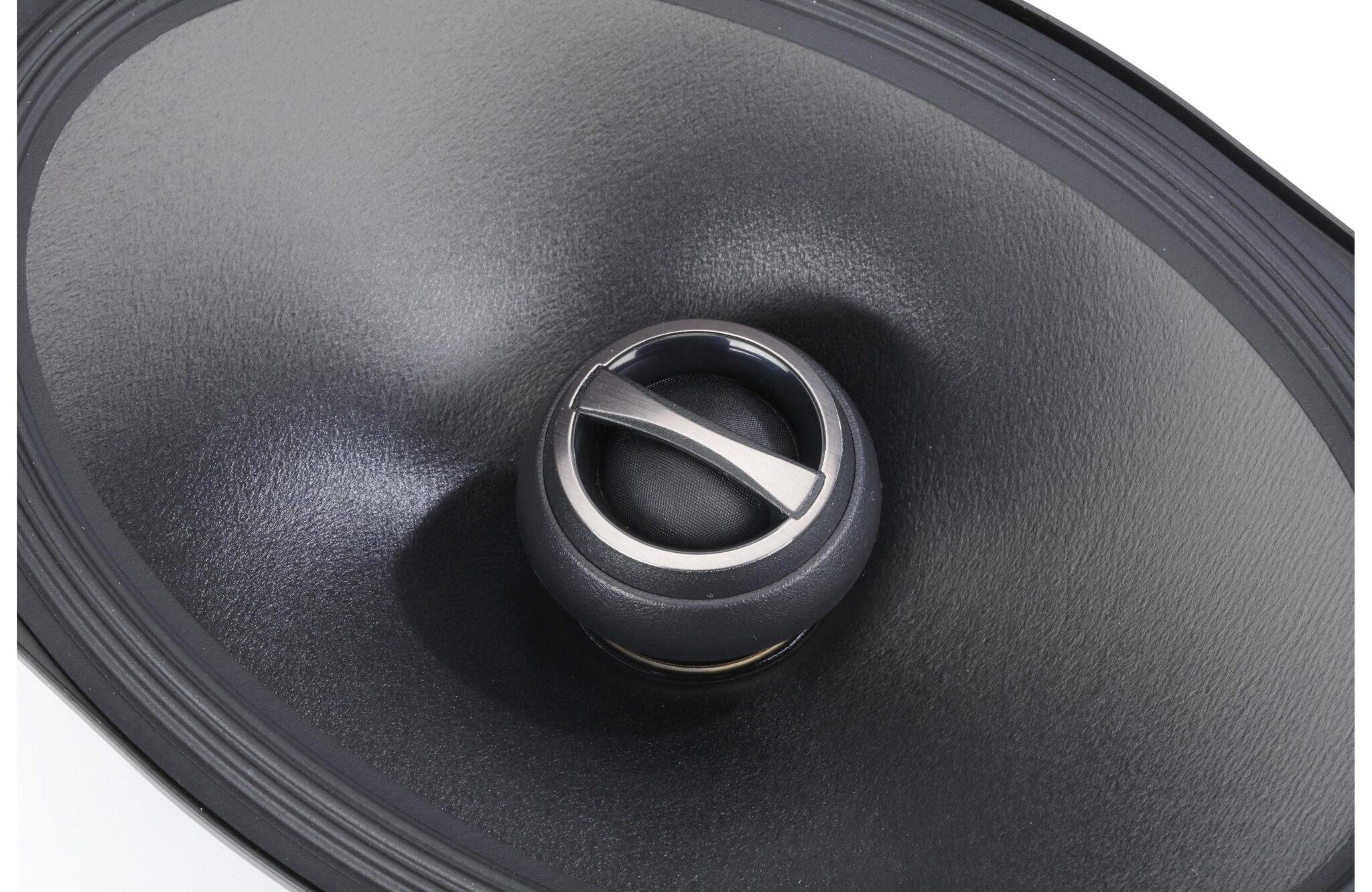

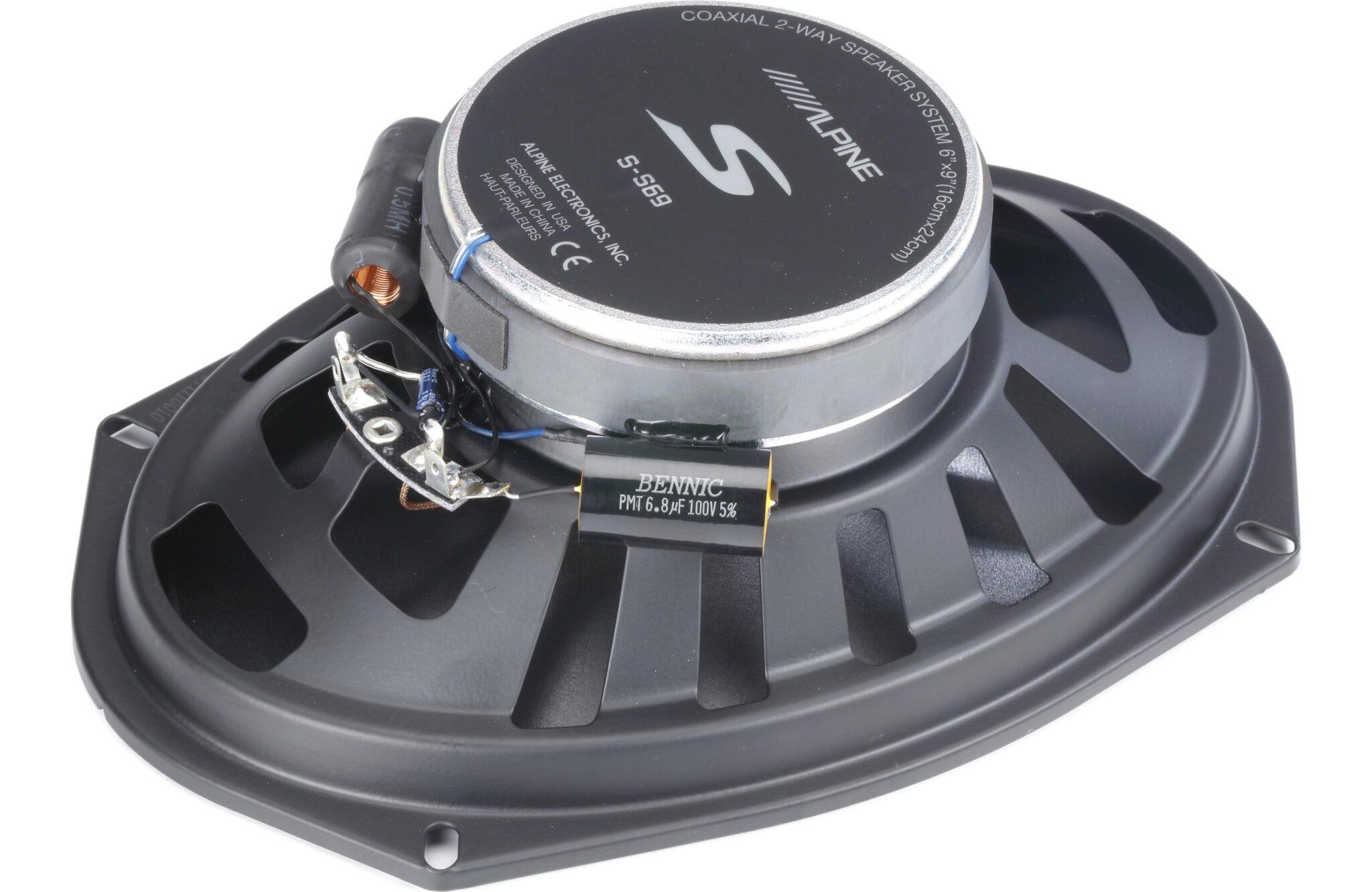

• 1″ Silk Dome Tweeter with Inline Crossover
• Grilles Not Included
• (CTA-2031 Compliant)

Key Features:-

• Efficient Performance
• Universal Applications
• H.A.M.R. Surround
• Wide Frequency Responses
• Speaker Grilles – Protect Your Speakers

Technical Specification -

• Speaker Type: 2-Way Speaker Set

• Frequency Response: 65 Hz - 22k Hz

• Peak Power Capacity: 260W

• • Max RMS Power Capacity: 85W
  • Impedance: 4Ω (ohm)
  • Sensitivity: 90 dB SPL (1W @ 1m)
  • Sound Pressure Level (SPL): 1W @ 1m
  • Recommended Amplification: Up to 85W RMS per Channel

• Dimensions: 6" x 9" (16cm x 24cm)

• • - Tweeter Size: 1" (2.5cm)
  • - Cutout Diameter: 5 29/32" x 8-3/4" (15cm x 22.2cm)

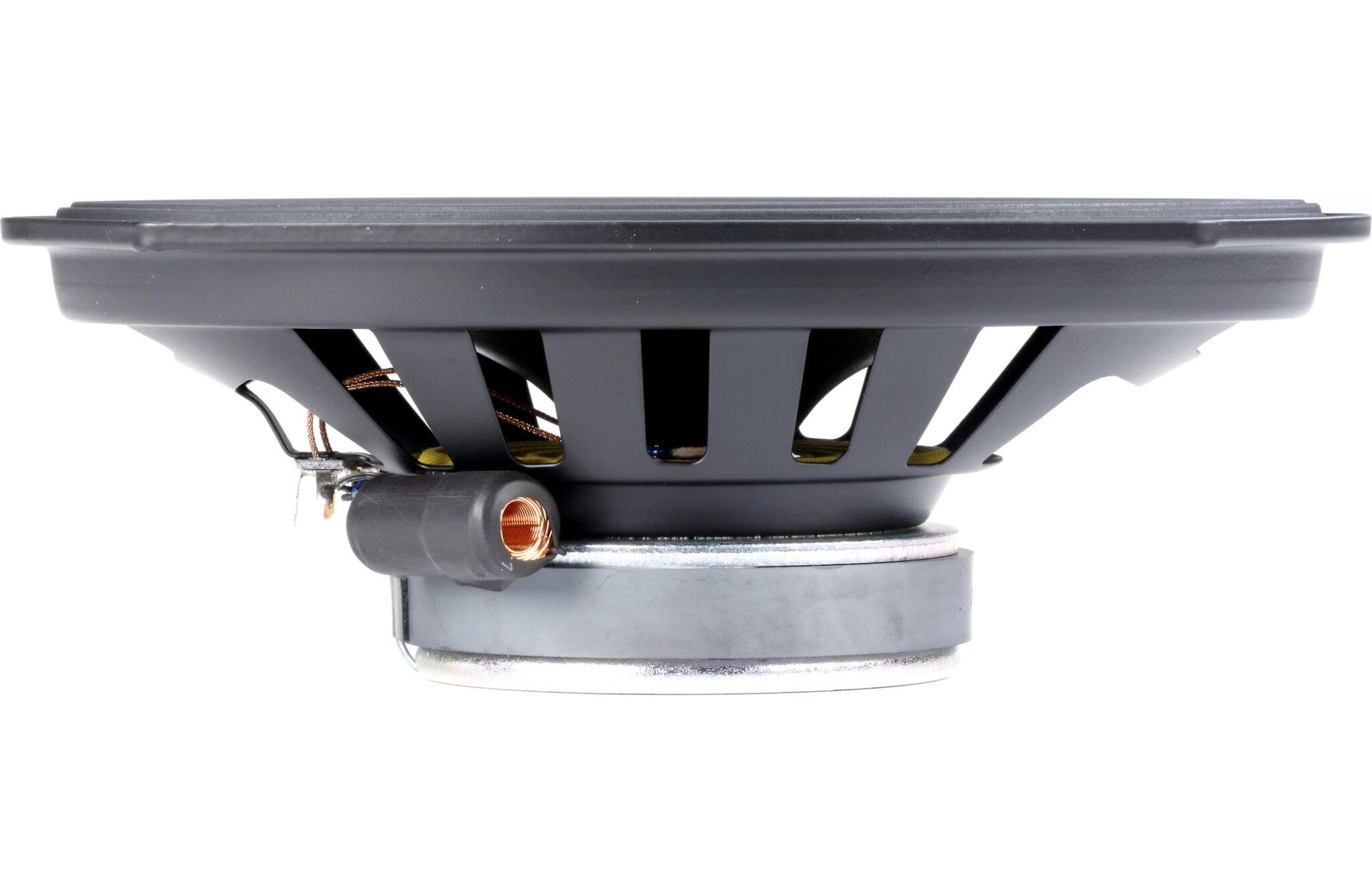

  • - Mounting Depth: 2-15/16" (5.8cm)

• Warranty: 1-Year Manufacturer's Warranty



More Features -

- S-Series Speakers Deliver the Winning Combination of Incredible Sound and Value Within the Entry-Level Category

- Larger Voice Coil and New CFRP (Carbon Fiber Reinforced Plastic) Cone

- Now with ALPINE's Patented HAMR (High Amplitude Multi-Roll) Surround, Allowing for Large Amounts of Linear Air Movement

- 1-Inch Silk Dome Tweeter

- Available 6x9-Inch S-Series Speaker Grills (Sold Separately)



In the Box:-

• 2 2-Way Car Speakers
• 2 Bottom Mount Brackets
• Two 12" Lengths of Speaker Wire (each has quick slides on one end and bare wire on the other)
• Eight 1-3/16" Screws
• Eight M4x60mm Machine Screws (each screw has a lock washer attached)
• Eight M4 Nuts
• 8 Speed Clips
• 16 Flat Washers
• 8 Split Lock Washers
• 8 Spacers
• /////ALPINE S-S69 Owner's Manual Card
• S-Series Amplifier Application Guide (English/ French)
• Online Product Registration Information (English/ French/ Spanish)
• Warranty Information (English/ French)
• Important Notice! (English/ French)
