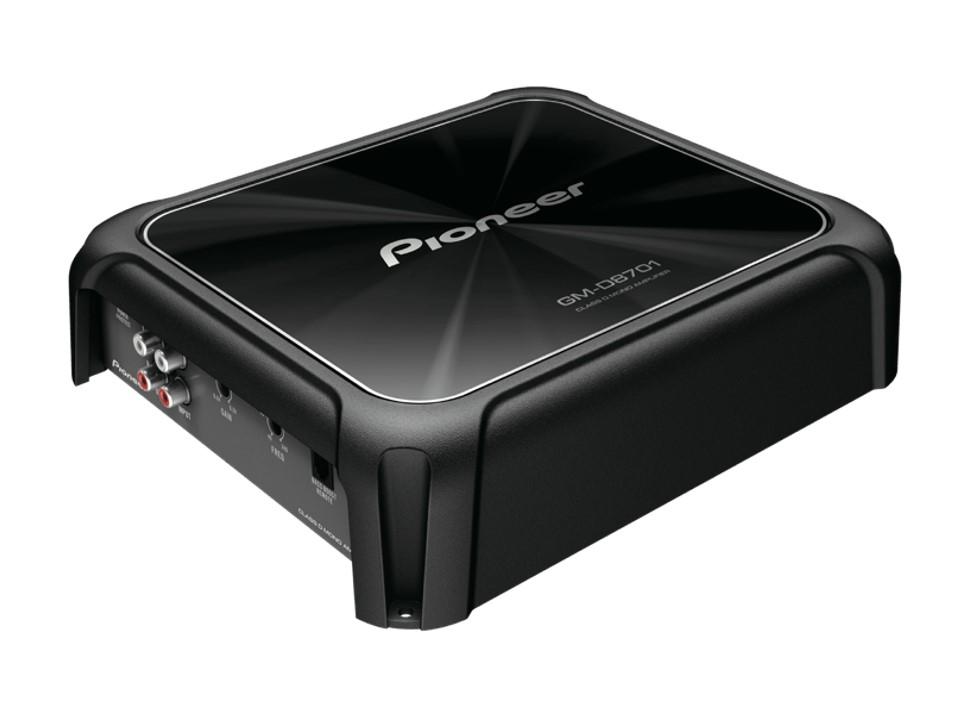

Brand – Pioneer
-
Model No. – GM-D8701
-
Type – Mono
-
Amplifier Class – D
-
Maximum Power – 1600W
-
Frequency Response: 10-24k Hz (0,-3dB)
General Specifications:-
-
Distortion (100Hz, 4Ω, 10w): < 0.5%
-
S/N Ratio (IEC-A/IHF-A N/W): >100dB
-
Frequency Response: 10-240Hz (0,-3dB)
-
Max. Input Level (RCA): 6.5V (Low)
-
Max. Input Level (SP-Input): 16v (High)
-
Load Impedance: 1-8 ohm
-
Transistor: MOSFET
-
Input level Control (RCA-IN): (200mv-6.5v)
-
Input level Control (SP-IN): (0.8v-16v) (High)
-
Frequency: 50Hz
-
Bass Boost: 0-18dB
-
Bass Boost Remote: Yes
-
Low Pass Filter: 40-240Hz, -12dB/oct
-
High Pass Filter: 0
-
Protection Indicator: RED (Side Panel)
-
Power Indicator: BLUE (Side Panel)
Features of Product:-
Bass Boost Remote
Every new class D Amplifier has a Bass Boost Remote Controller for optimal bass level adjustment according to listening preferences and music characteristics.
Highly Reliable Circuit Design
To prevent circuit shutdown, Pioneer’s new digital amplifier circuit “Protection Control System” senses its internal temperature and automatically moderates input level accordingly. Stable Durable Circuitry lessens the risk of high input power for the unit to achieve a 1-ohm connection. This design enhances the flexibility to connect multiple subwoofers to a system.
