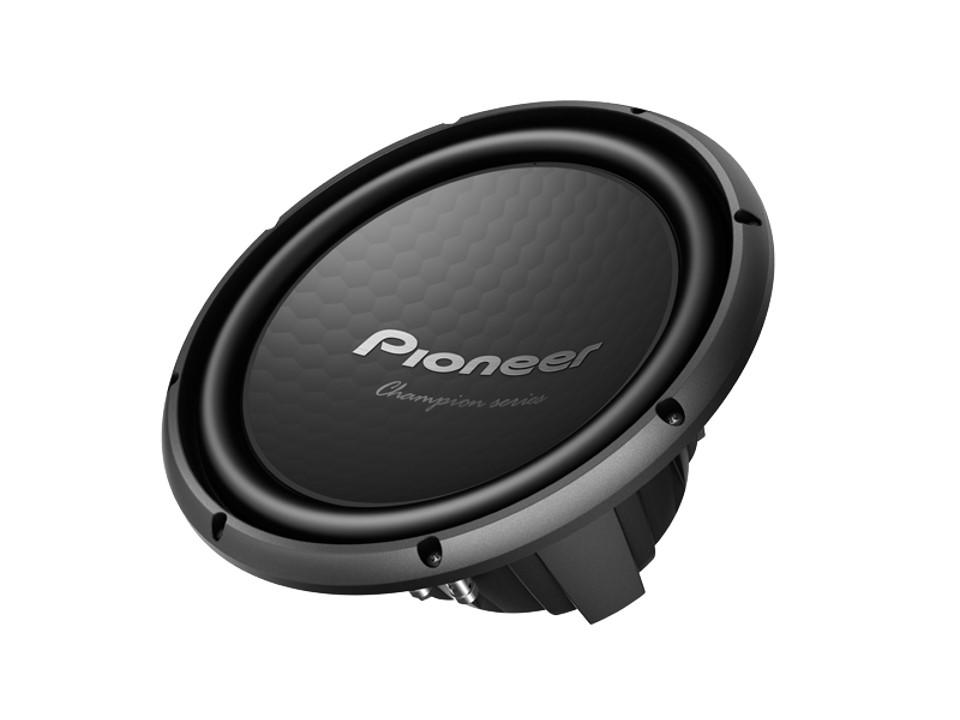

Pioneer TS-W1202D4 - Car Subwoofers

• Brand – Pioneer
• Model No. – TS-W1202D4
• Type – Enclosure Use
• Size – 12″ (in cone)
• Maximum Power Output – 1500W
• Nominal Power Output – 400W RMS
• Dimensions: 318mm x 163mm

General Information:-

• Sound Pressure Level: 96 dB（±1.5dB)
• Frequency Range: 22 Hz～1.6 Hz (-20dB)
• Impedance: 4 Ω (ohms) DVC
• Terminal: Silver Push Terminal (screw type )
• Surround Material: Rubber
• Cone Material: IMPP Composite Cone
• Mounting Depth: 146.0mm (5 3/4 inch)
• Cutout Hole: 281.0mm (11 1/8 inch)
• Weight: 3.82 kg

Features of Pioneer TS-W1202D4

• High Power Handling and High Endurance
• Deeper & Louder Bass
• High Reliability and Tough Body Design
• Dual Voice Coil
• Light & Rigid Honeycomb Design Seamless Cone
• Tough Magnet Cover
• Durable Rubber Surround
• Push Terminal
