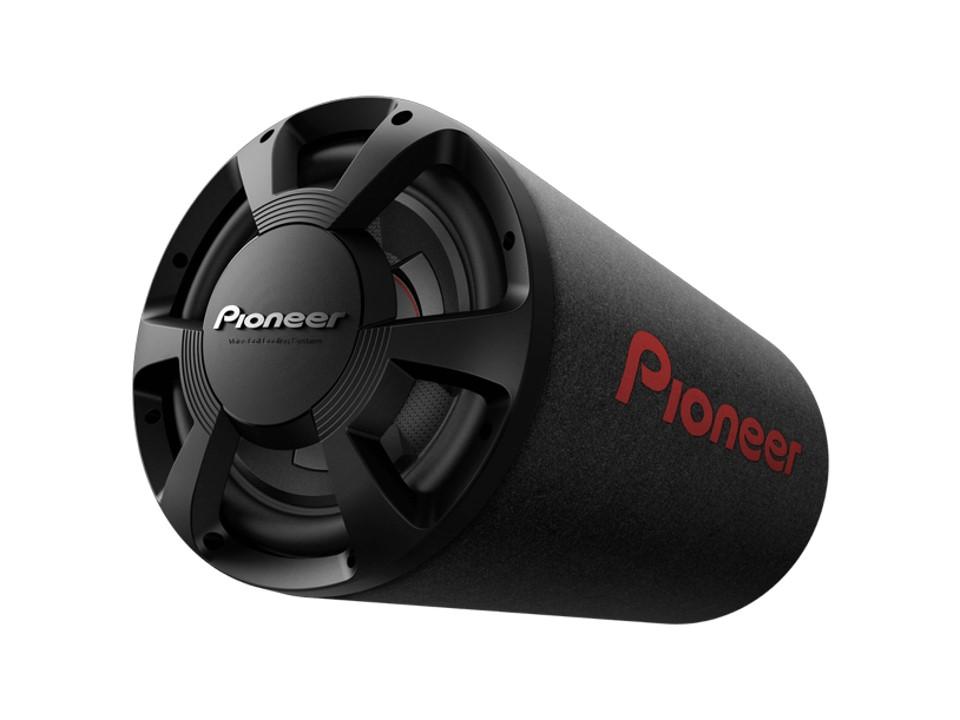

Brand – Pioneer
-
Model No. – TS-WX306T
-
Type – Bass-Reflex Type Tube Subwoofer
-
Size – 12″
-
Maximum Power Output – 1300W
-
Nominal Power Output – 350W RMS
-
Dimensions: 335mm x 640mm
General Information:-
-
Sound Pressure Level: 96 dB（±1.5dB）(in-car)
-
Frequency Range: 20 Hz～125 Hz（－20dB） (in-car)
-
Impedance: 4 Ω (ohms)
-
Terminal: Screw Type (color: silver)
-
Surround Material: Urethane Surround
-
Cone Material: IMPP Composite Cone
Features of Pioneer TS-WX306T
Voice Coil Cooling System
Heat radiation is the key point to improve durability and sound. Aluminum Cap & Aluminum Bobbin allow heat to be removed from the center of the subwoofer for improved frequency response and high power handling.
A: Heat is also radiated from the aluminum cap along the aluminum bobbin.
B: Heat is radiated from the iron of the magnetic circuit.
Best Tuned Enclosure System (Tube)
Any speaker will produce sound in any cabinet, but optimizing the relationship between the speaker and the enclosure is the key to good bass. Its ported enclosure system provides you with a deep, loud & punchy bass.
Powerful Composite Cone Design
Dome shapes integrated into the IMPP cone provide increased strength and rigidity for optimized bass response. Its cone has high rigidity and is light in weight for quicker response, thereby creating an impactful bass. Speaker cones with lesser rigid tend to move like a wave, creating an unpleasant musical experience. Why compromise on sound?
Large Suspension System
It supports the voice coil effectively by dampening the large cone vibration and enhancing the linearity of sound reproduction. Its soft part makes movement smooth and reproduces a clear sound at an excessive input, its hard part controls excessive vibration and prevents movement error.
